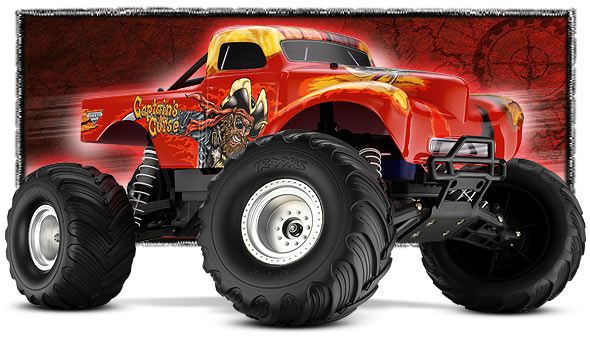

Traxxas 1/10 Scale Captain's Curse 2WD Monster Jam Replica Monster Trucks - 3602G
Traxxas is the Official Hobby-Class Radio Control Truck of Monster Jam
- Officially Licensed Captain's Curse body
and graphics
- New Monster Jam tires
with detailed tread design
- Authentic beadlock-style wheels
- Waterproof electronics for all-weather driving
excitement in water, mud and snow!
- Titan 12-Turn
550 Motor
- 30+mph!
- Powerful XL-5 Waterproof Electronic Speed Control
 Traxxas,
the Official Hobby Class Radio Control Truck of Monster Jam, now offers five
officially licensed Monster Jam models, each fully assembled and Ready-To-Race.
Choose from 30th Anniversary Grave
Digger, Grave Digger, Captain's
Curse Monster
Mutt, Maximum Destruction, and Advance
Auto Parts Grinder; all feature pre-applied decals with officially licensed
graphics to precisely duplicate the full-size monster machines. Captain's Curse
even includes custom truck bed roll bars to capture the accurate look of Monster
Jam's fiercest competitor. New tires developed specifically for the Monster Jam
models emulate the "hand carved" look of the full-size treads, and new deep-dish
wheels with bead-lock detailing complete the aggressive, authentic look.
 Crushing cars, catching big air, and popping wheelies has never been this much
fun, and Traxxas' new Monster Jam models make the action more realistic than
ever. When it comes to speed, the Titan 12-turn 550 modified motor and
racing-style Magnum 272 transmission propel Captain's Curse to speeds over
30mph*. The integrated cooling fan in the Titan 12T pulls air through the motor
keeping it cool. Airflow is routed through cooling channels molded into the
motor plate. A cooler running motor delivers faster speeds, longer runtime, and
extended motor life.
Sealed Electronics Extend Your Driving Fun
Traxxas
shocked enthusiasts with the release of our
exclusive watertight, sealed electronics that
provide the freedom to drive where you want to drive through water, mud, snow,
and other wet-running conditions that wouldn't have been possible before. The
Monster Jam models' XL-5 electronic speed control and the mini receiver are
sealed against the elements giving you the freedom go places you might not have
thought possible. It opens up a whole new world of adventure and fun.
To harness the power of the 12-turn motor, Traxxas bolted in the
high-performance, waterproof XL-5 electronic speed control. Ultra-smooth,
high-frequency operation and high-power handing capability, are standard
features. EZ-Set one-button
setup makes it easy to adjust or change profiles. Traxxas' exclusive Training
Mode profile cuts total power output in half and leaves the brakes at full
strength. It's the first controller of its kind that has a 50% power profile.
Training Mode is designed for young or first time drivers that want to learn the
ropes before unleashing the full power of the mighty Titan 12T motor. This makes
the Captain's Curse perfect for almost any age driver or skill level.
The quest for ultimate speed began with the battery connector. As today's
batteries store more and more energy inside their cells, traditional battery
connectors became a roadblock, unable to deliver all the energy the battery is
capable of outputting. The new Traxxas High-Current Connector opens the door for
unrestricted current flow.
The Traxxas Monster Jam models come fully loaded with innovative performance
options like a fiber-composite chassis designed for exceptional rigidity and
enormous ground clearance. Battery removal is made easy by the quick-release
battery hold down latch. In addition, the factory-installed planetary
differential never needs adjusting! Just take the truck out of the box, charge
up a battery, and go have fun! If you're looking for an all-terrain truck that
is perfect for monster bashing or wheelie-popping thrills, look no further.
QUICK FEATURES ON CAPTAIN'S CURSE REPLICA (#3602G)
-
 Includes: TQ
AM 27mHz radio system, Power Cell 3000 mAh NiMH 8.4V battery
pack, and charger
- Officially Licensed Captain's Curse graphics
- Realistic rubber tires on detailed beadlock-style wheels
- Powerful Titan 12T
550 modified motor with internal cooling fan
- XL-5 Waterproof Electronic Speed Control with Low Voltage
Detection
- Traxxas High-Current Connector
- High-torque waterproof steering servo
- 4 inches of ground clearance
- Brushless Ready Magnum 272 metal-gear transmission with
efficient rubber-sealed ball bearings
- Revo-Spec
Torque-Control slipper clutch system
- Traxxas Tough durability
- Telescoping universal-joint driveshafts
- Top speed, 30+mph
MODEL 3602G:
Fully assembled, waterproof, Ready-To-Races Curse,
with TQ radio,
XL-5 Electronic Speed Control and Officially Licensed Monster Jam replica
body and graphics.
Details
 Officially Licensed Captain's Curse Body and Graphics
Traxxas' Monster Jam models fully capture the aggressive styling of their
full-size counterparts, right down to the Captain's Curse high-energy graphics.
And since it's Ready-To-Race, the body is trimmed, mounted, and decaled for you.
 New
Monster Jam Tires and Beadlock-Style Wheels
New tires developed specifically for the Monster Jam models emulate the "hand
carved" look of the full-size treads, and are molded in a unique compound that
hooks up for maximum acceleration and great grip on a wide variety of surfaces
including dirt, grass, pavement, and rocks. New deep-dish wheels with bead-lock
detailing complete the aggressive, authentic look.
Titan 12-Turn
550 Modified Motor
Monster
Jam models come with a powerful Titan 12T 550 modified motor with internal
cooling fan. The Titan's over-sized armature (30% larger compared to 540-sized
armatures) is equipped with 12-turns of pure copper wire for big torque and
increased power-handling capabilities. Lower running temperatures are achieved
with the integrated cooling fan. The Titan 12T requires very little maintenance
and is designed for consistent torque and high speeds from run to run, without
fading. Beyond the specs, the Titan 12T is made for rock crushing torque, hardcore
wheelie launches, explosive jumping, and just about any other 4-wheel fun that
demands real horsepower.
Traxxas
Power Cell Battery Included!
Captain's Curse includes a Power Cell Battery Pack to make sure you experience
all the performance that's been engineered into your Traxxas model. Power Cell
packs are optimized for free-flowing power and maximum punch with premium
quality, low-resistance cells; flexible, silicone-jacketed 12-gauge wire;
heavy-duty welded tabs; and Traxxas' high-output, gold plated, high-current
connectors. Seven cells deliver 8.4 volts of motivation for maximum speed, and
precision assembly with attractive, individually wrapped cells and clear
overwrap complete the Traxxas Power Cell package.
XL-5
Waterproof Electronic Speed Control
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles
the elements while smoothly supplying power to the motor. This high-performance
speed control is packed with impressive specifications that are normally only
found on more expensive high-end replacement units. The XL-5 features a
completely waterproof design, LiPo-Ready Low-Voltage
Detection, three throttle profiles, Thermal Shutdown Protection, 4-8 cell
compatibility, and built-in BEC. High frequency operation combined with
ultra-low resistance make the XL-5 an efficient and ultra-smooth fully
proportional speed control. An exclusive feature on the XL-5 is the patent
pending Training Mode. This profile reduces the overall power output of the
XL-5 by 50% making it easier for young or new drivers to develop their control
skills before unleashing full-power operation. The XL-5 is manufactured by
Traxxas to ensure the highest level of quality and support. Low Voltage
Detection is a new feature on Monster Jam replica models.
- Built-in two-stage low voltage detection (LVD)
for Lithium
Polymer (LiPo) battery use
- Innovative watersealed design
- Three Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)
- 12-Turn motor limit for 550 size motors
- 15-Turn motor limit for 540 size motors
- Low-Voltage Detection
- Integrated on/off switch
- Traxxas EZ-Set one-button
setup
- Large heat sink
- High-efficiency MOSFET transistors
 High-Torque
Waterproof Digital Steering Servo
A monster truck needs a powerful steering servo for responsive performance, and
Traxxas delivers with the 2056
high-torque servo. This waterproof steering servo uses O-ring seals to keep
the fun going when things get wet. Waterproof for all-weather action, the 2056
provides 80 oz-in of steering muscle. That's twice the power of typical
"standard" servos.
 Waterproof
Receiver Box
Traxxas' innovative
receiver box is fully waterproof, yet it's easy to access the receiver
maintenance.The exclusive patent-pending design holds a 4-channel micro
receiver that saves weight and provides reliable, long-range R/C performance.
 Four Channel Micro Receiver
A
four channel Traxxas micro receiver gives you additional room to grow! The
4-channel micro receiver features two steering servo ports, eliminating the need
for a Y-harness.
 Securely Mounted Electronics
The
ESC and watertight receiver box are screwed to the chassis for ultimate mounting
security. There's no servo tape to loosen over time with dirt, heat, and
collisions.
 Revo-Spec
Torque-Control Slipper Clutch
Revo technology is utilized to manage the increased power from the Titan 12T
motor. The Torque-Control slipper clutch uses special semi-metallic friction
material and finned aluminum alloy pressure plates to dissipate heat and provide
consistent traction control. The semi-metallic friction material remains stable
across a wide temperature range to provide smooth, linear engagement you can
count on, run after run. Spur gears can be removed and replaced without altering
the slipper adjustment.
 Powder-Coated Springs
Captain's
Curse features white springs for realistic looks. Tough powder-coated finishes
make sure the good looks last, while carefully selected spring rates deliver
peak multi-terrain performance.
Included Optional Pinion Gear
Captain's Curse reaches their blistering 30+mph top speed on-road using the
optional 23-tooth pinion gear (included) and supplied Power Cell 7-cell battery.
Out of the box, the installed 19-tooth pinion gear is just right for all-around,
wheelie-popping, off-road action.
 Oil-Filled
Ultra Shocks
Traxxas' proven
oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and
super-smooth performance. They are fully tunable with a wide range of oils,
springs, and pistons. Features include pressure bladders for air/oil separation
and spring clips to precisely change the ride height and spring pre-load. They
can be renewed in minutes with our inexpensive rebuild kits.
 Motor
Mount with Cooling Channels
The
sealed gearbox protects the transmission components from dirt and rocks. The
molded motor plate now includes finned cooling channels where the motor mounts
to the motor plate. The cooling channels work in conjunction with the internal
Titan 12T motor fan to pull air through the motor for superior cooling.
 Brushless
Ready Magnum 272 Transmission
Monster Jam fun requires a monster-tough drivetrain. The Magnum 272 transmission
is assembled with all metal gear internals riding on ultra-smooth sealed ball
bearings. Combined with the smooth 48-pitch gears, power is delivered quietly to
the durable telescoping U-joint driveshafts. The sealed gearbox protects the
transmission components from dirt and rocks.
 Brushless
Ready Planetary Gear Differential
The composite Traxxas planetary gear differential features a steel ring gear
with a nylon gear housing for long life. It uses hardened steel internal gears
for maximum strength during rigorous off-road bashing. This type of differential
requires virtually no maintenance and its efficient design puts
maximum
tire-shredding torque to the wheels.
 Fiber Composite Arms
Solid,
durable camber links take the guess work out of set-up and are captured to keep
you on the trail even when the going gets rough. Captured rod ends and one-piece
camber links provide unmatched durability and they simply won't pop off.
 Monster
4" Ground Clearance
With 4-inches
of center ground clearance, Captain's Curse goes places other trucks can't!
Traxxas Monster Jam models easily tackle real world obstacles such as tall
grass, curbs, and rocks.
 Telescoping
Universal-Joint Driveshafts
Slider driveshafts are extremely durable, and they allow greater articulation
for increased suspension travel. Universal joints on both ends of the shafts
deliver smooth, chatter-free power delivery.
 TQ Radio System
The included TQ
radio system includes a high-power transmitter with a specially designed comfort
grip, a precise high-torque steering servo, and a compact receiver. The
perfectly balanced TQ transmitter features servo reversing, a low battery
indicator, electronic trim control, and it is digitally proportional for precise
steering and throttle control.
Features
- Officially Licensed Captain's Curse replica
painted body
- Monster Jam replica
tires and wheels
- Waterproof electronics permit driving in water, mud and snow
- Waterproof receiver box
- High-torque Waterproof Traxxas 2056 steering
servo
- Monstrous 4-inches of ground clearance
- Included optional 23-tooth pinion gear pushes Grave Digger
to speeds over 30mph.*
- Powerful Titan 12T
550 modified motor with internal cooling fan
- XL-5 Waterproof Electronic Speed Control
- Innovative watersealed design
- LiPo, NiCad, and NiMH compatible with two-stage low-voltage
detection
- High current handling
- Forward/reverse/brake
- Smooth high-frequency control
- EZ-Set push-button
setup
- Thermal shutdown protection
- Integrated on-off button
- Three easy-to-program drive profiles
- Sport Mode – Forward / Brake / Reverse
- Race Mode – Forward / Brake
- Training Mode - 50% Forward / Brake / 50% Reverse (patent
pending)
- High efficiency MOSFET transistors
- Equipped with Traxxas High-Current Connectors
- Backed by the Traxxas Lifetime Electronics Warranty
- Speed control and receiver are securely screwed to the chassis.
- Efficient Magnum 272steel-gear transmission with ball bearings
- Sealed gearbox protects the transmission with beefed up motor
guard for extra protection.
- Revo-spec
Torque-Control slipper clutch system
- External gear cover with easy slipper access
- Reliable planetary gear differential
- Efficient telescoping U-joint driveshafts
- Fiber-composite chassis
- Easy access battery compartment
- Fully adjustable Ultra Shocks with X-ring technology
- White powder-coated shock springs with responsive spring rate
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off for superior durability
- Unparalleled Traxxas support parts availability
MODEL 3602G: Fully assembled, waterproof, Ready-To-Race Captain's
Curse,
with TQ radio, XL-5 Electronic Speed
Control and Officially Licensed Monster Jam replica
body and graphics.
Specification
CAPTAIN'S CURSE MONSTER JAM REPLICA (#3602G) SPECS
| Length: |
|
16.25" (413mm) |
| Front Track: |
|
12.75" (324mm) |
| Rear Track: |
|
12.75" (324mm) |
| Weight: |
|
65.3oz (1.85 kg) |
| Max Height: |
|
8.75" (222mm) |
| Wheelbase: |
|
10.63" (270mm) |
| Front Shock Length: |
|
Long |
| Rear Shock Length: |
|
XXLong |
| Front Tires: |
|
5.2" Monster Jam
Tires |
| Rear Tires (pre-glued): |
|
5.2" Monster Jam
Tires |
| Front Wheels: |
|
2.0" Monster Jam
Wheels
|
| Rear Wheels: |
|
2.0" Monster Jam
Wheels |
| Electronic Speed Control: |
|
XL-5™ Electronic Speed
Control |
| Motor (electric): |
|
Titan 12T 550
(12-Turn) |
| Steering Servo: |
|
#2056 High Torque Waterproof |
| Receiver: |
|
#2216 4-Channel Micro |
| Gear Ratio (internal): |
|
2.72 (final drive: 12.34) |
| Differential Type: |
|
Planetary |
| Gear Pitch: |
|
48-Pitch |
| Transmission: |
|
Magnum 272™ |
| Steering: |
|
Single Point |
| Chassis Type: |
|
Modified Tub |
| Chassis Material: |
|
Composite Nylon |
| Top Speed: |
|
30+mph** |
| Skill Level: |
|
1 |
| *Battery Tray Dimensions: |
|
138mm x 46mm x 26mm |
| Included Batteries: |
|
Traxxas Power Cell
Battery (NiMH, 7-C Hump) |
| Required Batteries: |
|
8 "AA" (transmitter) |
|
XL-5 (WATERPROOF) ESC SPECIFICATIONS
| Input voltage: |
|
4-8 Cells NiMH (4.8 to 9.6
volts)
2-cells (2S) LiPo (7.4 volts) |
| Case Size: |
|
1.23"W x 2.18"D x 0.61" H |
| Weight: |
|
2.44 Ounce |
| Motor Limit: |
|
15-turns** (540 Size)
12-turns** (550 Size) |
| On Resistance Forward: |
|
0.007 Ohms |
| On Resistance Reverse: |
|
0.014 Ohms |
| Peak Current - Forward: |
|
100A |
| Peak Current - Reverse: |
|
60A |
| Braking Current: |
|
60A |
| Continuous Current: |
|
14A |
| BEC Voltage: |
|
6.0 VDC |
| BEC Current: |
|
1A |
| Power Wire: |
|
14 Gauge / 5" |
| Input Harness Wire: |
|
26 Gauge / 9" |
| Transistor Type: |
|
MOSFET |
| PWM Frequency: |
|
1600 Hz |
| Low Voltage Detection (LVD): |
|
2-Stage indicators,
switchable (on or off) |
| Thermal Protection: |
|
Thermal shutdown |
| Profile selection: |
|
Sport Mode:
100% FWD, 100% brakes, 100% REV
Race Mode:
100% FWD, 100% brakes, no REV
Training Mode:
50% FWD, 100% brakes, 50% REV |
| Single-button setup: |
|
Yes, Traxxas EZ-Set |
|
MODEL 3602G: Fully assembled, waterproof, Ready-To-Race Captain's
Curse,
with TQ radio, XL-5 Electronic Speed
Control and Officially Licensed Monster Jam replica
body and graphics.
Click here for more Infomation
Manual
Instructions
Parts List
Exploded Views
Box Panels
Watch A Video of This Model
Video - 1
Video - 2
|
Fast Gas
Scooters are in stock at cheap gas scooter prices. Electric
scooters are now being featured. More scooters can be found here: Gas Scooters Site Map & ©
Copyright Gas Scooters.netThis site contains some affiliate links for which we may be compensated.. |
|
|
