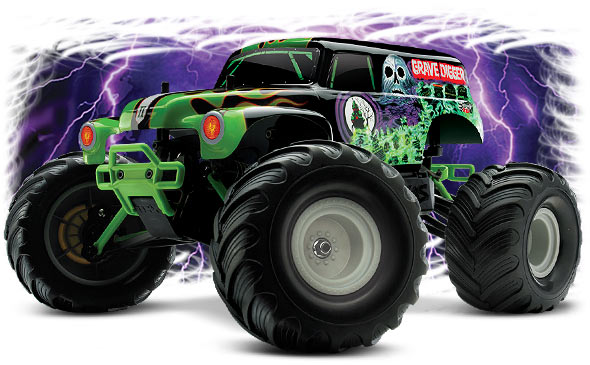

Take Grave Digger On the Go!

Take Monster Jam fun and excitement anywhere with the 1/16 Grave Digger, complete with backpack for on-the-go adventure! High-torque Titan 550 motor and 2WD drivetrain deliver wheelie-popping power, and the authentic Grave Digger styling is officially licensed right down to the tombstones for realistic monster fun. "Carved" chevron tires on beadlock-style wheels finish off the Monster Jam look, and the included long-range TQ 2.4GHz radio system keeps you in complete car-crushing control. Toss the truck and transmitter into the included Grave Digger backpack, and Monster Jam thrills are ready for the road!

Precision 2.4GHz Control Radio System

With the TQ 2.4GHz radio system, you just switch on and drive. There are no channels or frequencies to manage, so the focus is on having fun. The TQ's ergonomic design is comfortable for all-day driving, and its sleek lines are enhanced by an internal antenna that is impervious to damage. To customize the controls, the transmitter's factory servo directions can be easily reversed through the simple programming system.

Modified Muscle

Leave it to Traxxas to put the huge torque of a the Titan 550 motor into the 1/16 Grave Digger for high-powered monster performance! The Titan modified motor is designed for incredible mod-motor power output with virtually maintenance-free operation and long-lasting performance. The Titan 12T 550 motor's integrated cooling fan pulls cool air through the motor to keep temperatures down. A cooler running motor equates to faster speeds, longer runtime, and extended motor life. The XL-2.5 Electronic Speed Control offers high current handling, EZ-Set  one-button setup, and smooth high-frequency control. Three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance are all features you might expect to only be available on an expensive replacement speed control, but they're standard equipment with the 1/16 Grave Digger.

Proven Traxxas Innovation

No detail was overlooked in our mission to bring all the capability, durability, and excitement of Traxxas' award-winning models to 1/16 scale for fast, affordable R/C fun. The 1/16 Grave Digger is built on the race-winning, track-proven innovation of the Revo and E-Revo models. The standard-bearer of design excellence, the Revo's rocker-actuated inboard suspension has been expertly adapted to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability and performance at the absolute pinnacle of truck design. The suspension and electronics are fully integrated into the semi-monocoque chassis design that stunned the world when it debuted with the E-Revo. Intricately molded as a single piece, the chassis balances strength and weight, function and aesthetics, convenience and performance to far surpass the standards of the "mini" category. In 1/16 scale, it is an even more impressive achievement of packaging and performance optimization that could only come from Traxxas,  The Fastest Name In Radio Control^.

Optimized for All-Terrain Excitement

The 1/16 Grave Digger is built on proven innovation of 1/16 E-Revo and dialed in with a rear-wheel-drive monster truck setup for exceptional versatility and fun. The unique inboard suspension is equipped with Progressive-2 rockers for the perfect balance of ground clearance and traction on a variety of terrains. New Monster Jam 1.7"  rims hold replica Monster Jam tires with the same scale tread pattern as the "big" Grave Digger to deliver tenacious off-road traction.

Waterproof Electronics For Go-Anywhere R/C Adventure

1/16 Grave Digger looks ready for anything because it is ready for anything! Fully waterproof electronics keep the fun rolling through water, mud and snow while lesser trucks stay on the bench. The patent-pending sealed receiver box houses Traxxas' micro 2.4GHz receiver and can accept aftermarket receivers as well, without compromising the waterproof properties. The XL-2.5 electronic speed control and high-torque, digital micro servo are sealed against the elements giving you the freedom to go places other cars wouldn't dare to venture.

100% Ready-To-Drive

The 1/16 Grave Digger is fully assembled with TQ 2.4GHz radio system, XL-2.5 electronic speed control, Titan 12T 550 motor, painted and decaled body, pre-glued tires, and detailed instructions. A Traxxas Power Cell NiMH battery and charger are also included, making the Grave Digger truly Ready-To-Drive. Designed specifically for the high-power needs of Traxxas vehicles, the potent Power Cell pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive High-Current Connector for efficient power transfer, run after run. Traxxas backs the 1/16 Grave Digger and all of our products with top-notch support that is second to none. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows the Grave Digger to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!).

QUICK FEATURES ON 1/16 GRAVE DIGGER (#72024)

• TQ 2.4GHz radio system
• Ready-To-Drive with included 6-cell NiMH Power Cell battery and charger
• Revo suspension technology for superior handling and control
• Efficient 2WD drivetrain, fully upgradeable to 4WD
• High-torque Titan 12T 550 motor
• Waterproof electronics
• Torque-control slipper clutch
• Sealed differential
• Realistic Monster Jam tires and wheels
• Traxxas High-Current Connector
• Metric hex hardware
• Rubber-sealed ball bearings

MODEL 72024: Fully assembled, Ready-To-Race 1/16 Grave Digger 2WD Monster Truck with TQ 2.4GHz radio system, Titan 12T 550 motor, XL-2.5 electronic speed control, 7.2 volt NiMH battery & charger, backpack, and painted replica body.

Details

Officially Licensed Grave Digger Body and Graphics

Traxxas Monster Jam models fully capture the aggressive styling of their full-size counterparts, right down to Grave Digger's misty graveyard graphics. And since 1/16 Grave Digger is Ready-To-Race, the durable polycarbonate body is trimmed, mounted, and decaled for you.

XL-2.5 Waterproof Electronic Speed Control

Designed and engineered by Traxxas, the XL-2.5 Electronic Speed Control delivers smooth throttle control with 550-size and smaller motors and is completely waterproof for all-weather R/C driving fun. This high-performance speed control is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 6-8 cell NiMH compatibility, and built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-2.5 an efficient and ultra-smooth fully proportional speed control. The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support.

• Built-in two-stage low voltage detection (LVD)
  for Lithium Polymer (LiPo) battery use
• Innovative waterproof design
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse
• EZ-Set push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty

Precision 2.4GHz Control

With the TQ 2.4GHz radio system, you just switch on and drive. There are no channels or frequencies to manage, so the focus is on having fun. The TQ's ergonomic design is comfortable for all-day driving, and its sleek lines are enhanced by an internal antenna that is impervious to damage. To customize the controls, the transmitter's factory servo directions can be easily reversed using the TQ's simple programming system.

Waterproof Electronics

Mud. Water. Snow. 1/16 Grave Digger's waterproof electronics and fully sealed receiver box let you make tracks in conditions that leave other trucks parked at home. Traxxas' innovative, ground-breaking waterproof receiver box puts 1/16 Grave Digger in a league of its own. The antenna and servo wires route neatly through a special watertight seal (patent pending). To protect the receiver from dust and water a custom shaped blue O-ring seals the receiver box. Thanks to the unique design, the receiver can be removed for service and even aftermarket receivers can be used, without losing the sealing properties of the box.

Three-Channel Micro Receiver

Traxxas' 3-channel micro receiver provides reliable reception as it saves weight, and dual channel-1 inputs allow you to install dual steering servos without the need for a bulky Y-harness. The receiver is fully protected from the elements by 1/16 Grave Digger's waterproof receiver box.


Traxxas Power Cell Series 1 NiMH Battery Pack

The 1/16 Grave Digger is fully assembled and Ready-To-Drive with an included Power Cell NiMH battery and charger. Designed specifically for the high-power needs of Traxxas vehicles, this potent pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive High-Current Connector for efficient power transfer, run after run. A convenient wall charger is also included. Everything you need to power-up is in the box.

Dual Battery Compartments

The chassis' dual battery compartments let you add a second NiMH battery pack and  Traxxas parallel connector (both sold separately) to nearly double 1/16 Grave Digger's run time for even more off-road adventure between charges.

Traxxas High-Current Connectors

The XL-2.5 electronic speed control comes equipped with the revolutionary Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the battery's total power to the electronics to keep things running cool and at full capacity.

Titan 12-Turn 550 Modified Motor

1/16 Grave Digger includes a powerful Titan 12T 550 modified motor--the same motor used in Traxxas' larger 1/10 scale models! The Titan's over-sized armature (30% larger compared to 540-sized armatures) is equipped with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with the integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds run after run, without fading. The Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower.

New Monster Jam Tires and Beadlock-Style Wheels

New tires developed specifically for 1/16 Grave Digger emulate the "hand carved" look of the full-size treads, and are molded in a unique compound that hooks up for maximum acceleration and great grip on a wide variety of surfaces including dirt, pavement, and rocks. New deep-dish wheels with bead-lock detailing complete the aggressive, authentic look.

Ball-Bearing Transmission with Slipper Clutch

1/16 Grave Digger's high-efficiency, heavy-duty transmission is designed for full-throttle fun with precision ball bearings and high-strength gears. An adjustable slipper clutch lets you tailor power delivery to suit the terrain and your driving style, and makes certain every watt of power is turned into pure performance.

Sealed Silicone-Filled Differential

An industry first! Only Traxxas offers the superior power-handling and tuning capability of a sealed differential in 1/16 scale. The heavy-duty, steel-gear diff is factory-filled with premium silicone fluid to prevent unloading and maintain maximum traction and control. It's a Traxxas innovation you won't find on any other mini-model.

Pivot Ball Suspension

1/16 Grave Digger features pivot-ball suspension for smooth suspension articulation and easy adjustment. Rubber-sealed ball bearings ward off dirt and debris as they increase precision and reduce friction, and the oversized 8x12mm inboard bearings maximize durability. For extra security, the heavy-duty axle carriers are designed so the universal-joint axles' crosspins are captured by the inner bearings another example of Traxxas' attention to every detail.

Universal-Joint Driveshafts

1/16 Grave Digger is fully equipped with telescoping, universal-joint axles for optimum drivetrain efficiency and maximum power transfer. The true-curvilinear spline design operates freely, and the oversized U-joints set the standard for strength and high-power durability.

Digital High-Torque Waterproof Steering Servo

Small but powerful, the 1/16 Grave Digger's #2080 servo cranks out 41.7 oz.-in. of tire-turning torque with digital circuitry for responsive control even in water, mud and snow, thanks to its O-ring-sealed waterproof construction.

Quick-Release Battery Doors

Grave Digger uses an innovative solution for easy battery installation. Quick-release battery doors snap open and closed in seconds for fast and easy battery installation. There are no clips to lose in the field, and fast battery changes during pit stops let you spend more time on the trail and less time on the bench.


Battery Compartment Vents

Resembling the exhaust ducts of a turbine powered jet, the futuristic battery vents are securely mounted on the chassis. In addition to offering entrance and exit cooling, the oversized openings incorporate latches that insert into the battery door clasps. The battery compartment vents symbolize the sleek and high-tech image that places Traxxas 1/16 scale vehicles in a class all their own.

Oil-Filled GTR Shocks

1/16 Grave Digger's super-smooth oil-filled shocks damp the suspension and maintain control no matter how rugged the terrain. They are fully tuneable and include pressure bladders for air/oil separation and threaded spring pre-load collars for quick ride height adjustments.

Revo-Spec Suspension

A defining feature of the Grave Digger, expertly executed in 1/16 scale. The unique Revo-Spec suspension places the shocks inboard on the chassis, away from dirt and debris, and amplifies the shocks' travel for incredible off-road capability without the weight of extra-long shocks. Installed Progressive-2 rockers provide linear travel; optional Progressive rockers are available to tune the 1/16 Grave Digger with damping and spring rates that increase as the suspension is compressed.


Progressive Rate Travel

With over 50mm of suspension travel, 1/16 Grave Digger offers the most articulation possible for bump and jump handling capability that leaves other trucks far behind. Tunable progressive damping rates, independent ride height adjustment, and the absolute highest level of control for any situation put Traxxas 1/16-scale models far ahead of the pack.

Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high-tech look and feel.

Fully Customizable With Traxxas Factory Options

Designed and engineered for lasting performance, high precision, superior durability and unbeatable style, genuine Traxxas options for 1/16 Grave Digger are the perfect way tailor your truck to the track, or just add the unique touches that make it your own. From red-anodized toe links and pushrods to CV axles and hard-anodized shock bodies, Traxxas offers a wide range of performance parts for the 1/16 Grave Digger.

 MODEL 72024: Fully assembled, Ready-To-Drive 1/16 Grave Digger with TQ 2.4GHz radio system, Titan 12T 550 motor, XL-2.5 electronic speed control, 7.2 volt NiMH battery & charger, and painted replica body.

Features


• TQ 2.4GHz radio system
• Officially Licensed Monster Jam replica painted body
• Includes Grave Digger Backpack
• Monster Jam replica wheels and "carved" tires
• Unique green pushrods, toe links, and bumpers, exclusive to the 1/16 Grave Digger
• Efficient 2WD drivetrain, fully upgradeable to 4WD
• Race-winning, F1-inspired Revo suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage
• XL-2.5 Waterproof Electronic Speed Control

  • Innovative waterproof design
  • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
  • Fully-proportional forward, reverse, and braking control
  • Programmable with three drive profiles:
    • Sport Mode - Fwd / Brake / Rev
    • Race Mode - Fwd / Brake
    • Training Mode - 50% Fwd / Brake / 50% Rev
  • EZ-Set push-button setup
  • Multi-color LED
  • Thermal shutdown protection
  • Efficient, low-loss MOSFET design
  • High-capacity heat sink
  • Smooth, high-frequency operation
  • Easy installation in Traxxas models
• Titan 12-Turn 550 Modified Motor
• Digital High-Torque Waterproof Micro Steering Servo (#2080)
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled rear differential an industry first in 1/16 scale
• Torque-Control slipper clutch system
• Telescoping universal-joint driveshafts
• Rubber-sealed ball bearings
• External gear cover with easy slipper access
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery compartments with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Scale Monster Jam front and rear tires offer superior on- and off-road traction
• Full line of genuine Traxxas accessories available
• 1/16 Grave Digger is backed by unparalleled Traxxas support and parts availability

MODEL 72024: Fully assembled, Ready-To-Drive 1/16 Grave Digger 2WD Monster Truck with TQ 2.4GHz radio system, Titan 12T 550 motor, XL-2.5 electronic speed control, 7.2 volt NiMH battery & charger, backpack, and painted replica body.

Specification


1/16 GRAVE DIGGER (#72024) SPECS

XL-2.5 WATERPROOF ESC SPECIFICATIONS

MODEL 72024: Fully assembled, Ready-To-Drive 1/16 Grave Digger 2WD Monster Truck with TQ 2.4GHz radio system, Titan 12T 550 motor, XL-2.5 electronic speed control, 7.2 volt NiMH battery & charger, backpack, and painted replica body.

Click here for more Information

Manual

Instructions

• 2080 Micro Servo Gear Set Installation/Assembly
• 1/16 RPM Sensor Installation
• 1/16 Voltage Tap Installation
• 1/16 Temp Sensor Installation
• Traxxas Power Cell Battery Application Guide (Counter Mat) (LiPo and NiMH)
• 4091 On-Board Temperature Meter Instructions (for TRX engines)

Parts List

Exploded Views

• 1/16 Grave Digger (72024) Transmission Exploded View
• 1/16 Grave Digger (72024) Rear Exploded View
• 1/16 Grave Digger (72024) Front Exploded View
• 1/16 Grave Digger (72024) Driveshafts Exploded View
• 1/16 Grave Digger (72024) Chassis Exploded View

Watch A Video of This Model
